Fanimation

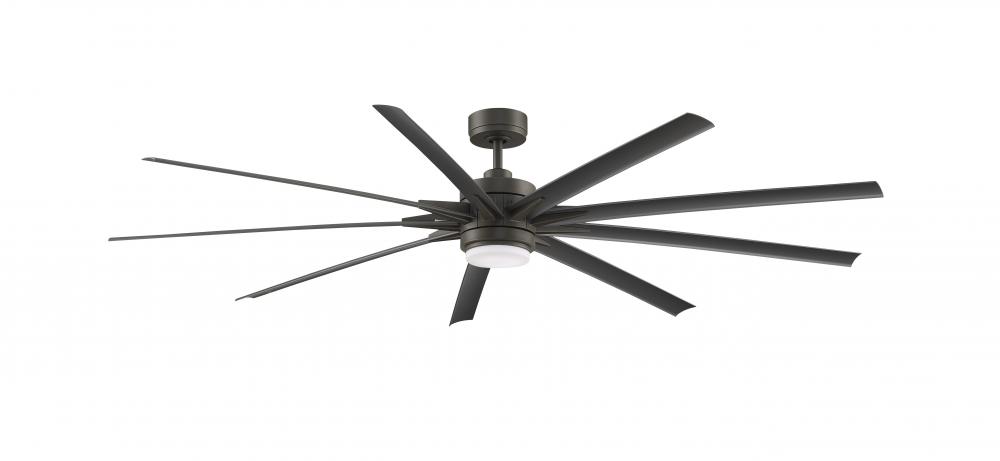

Odyn - 84 inch - GRW with WE Blades and LED Light Kit (FPD8159GRW)
$1662.99
Call For Price
Enlarge Image
Add to Cart
ENERGY INFORMATION
at High Speed
Airflow
10236
Cubic Feet per Minute		 Electricity Rate
34
Watts
(excluded lights)		 Airflow Efficiency
232
Cubic Feet Per Minute Per Watt
Description:
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Availability:
  • Manufacturer has 245 items available.
  • More Items available 05/05/2025.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 16.64"
right arrow Width: 84.00"
Additional Details:
right arrow Finish: Matte Greige
right arrow Option: Energy Star energy star.jpg , Wet Rated energy star.jpg
right arrow Glass: Opal Frosted
right arrow Category: Fan-Uni
right arrow Family: Odyn 84
right arrow Voltage: 120
right arrow Number of Bulbs: 1 Bulbs
right arrow Additional Info: 10,236 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included , TR205 handheld remote with CR2032 batteries included
right arrow Air Flow CFM: 10236
right arrow Air Flow Efficiency: 232
right arrow Amperage: 0.45
right arrow Blade Finish: Weathered Wood
right arrow Blade Pitch: 12
right arrow Blade Span: 84
right arrow Bulb Type: 18W LED Module
right arrow Canopy: Diameter- 6.46 Height- 2.58
right arrow Diameter: 8.27
right arrow Down Rod Included: 6
right arrow Electricity Used: 34
right arrow Harmonized Codes: 8414.51.3000
right arrow Kelvin: 3000
right arrow Length: 84
right arrow Light Kit Included: Yes
right arrow Lumens / Light Output: 1400
right arrow Material: Composite
right arrow Motor Fan Speed: 16
right arrow Motor RPM: 70
right arrow Motor Size: DC165NL
right arrow Motor Type: DC
right arrow Remote Control Included: TR205D
right arrow Ship Carton Height: 12.87
right arrow Ship Carton Length: 40.08
right arrow Ship Carton Width: 10.47
right arrow Ship Weight: 37.95
right arrow Sold By: Each
right arrow Warranty: Limited Lifetime Warranty
right arrow Weight: 34.18
right arrow Airflow Efficiency Low: 1136
right arrow Airflow Efficiency Medium: 507
right arrow Avg Airflow Efficiency: 268
right arrow Avg CFM Energy: 7210
right arrow Avg Energy Use Watts: 27
right arrow Avg Estimated Yearly Energy Cost: 8
right arrow Avg Estimated Yearly Energy Cost on HIGH: 10
right arrow Blade Finish Method: Painted
right arrow Blade Material: Composite
right arrow Blade Reversible: No
right arrow Blade Sweep: 84
right arrow Cap Included: Yes
right arrow Carton Cubic Feet: 3.1254
right arrow Cartons Per Unit: 1
right arrow Case Height: 12.87
right arrow Case Length: 40.08
right arrow Case Weight Pounds: 37.95
right arrow Case Width: 10.47
right arrow CEC Uploaded: Yes
right arrow Ceiling To Blade Edge: 12.2
right arrow Ceiling to Bottom No LK: 16.33
right arrow Ceiling to Bottom with LK: 16.64
right arrow CFM Low: 4219
right arrow CFM Medium: 7527
right arrow Compatible Accessories: CCK8002GRW, DR1-CPGR, DR1SS-12GRW, DR1SS-18GRW, DR1SS-24GRW, DR1SS-36GRW, DR1SS-48GRW, DR1SS-60GRW, DR1SS-72GRW, SCB1-52
right arrow Compatible Controls: WFR8159
right arrow Compatible Wall Controls: TW206D
right arrow Country of Origin: China
right arrow CRI: 90
right arrow Current Draw Low: 0.07
right arrow Current Draw Medium: 0.2
right arrow DOE Classification: LSSD
right arrow DOE-FTC Uploaded: Yes
right arrow Exempt from DOE Procedure: No
right arrow Fan Energy Star: Yes
right arrow Included Control Type: Handheld
right arrow Leadwire: 80
right arrow Light Kit Energy Star: Yes
right arrow Maximum Slope Degree: 27
right arrow Motor Finish Method Type: Painted
right arrow Motor Reversible: Yes
right arrow Number of Blades: 9
right arrow Product Certification: UL/CUL
right arrow Regulated Product: Yes
right arrow Reverse Switch Location: Control
right arrow RPM Low II: 29
right arrow RPM Medium IV: 50
right arrow Safety Rating: UL/cUL
right arrow Voltage Cycles: 60HZ
right arrow Watts Low: 4
right arrow Watts Medium: 13
right arrow Watts Per Bulb: 18
right arrow Wet Rated: Yes
right arrow Standard Category: Exterior , Fans
right arrow Standard Subcategory: Exterior Fans , Outdoor Fans
right arrow Standard Finish: Gray , Miscellaneous
right arrow Standard Style: Traditional
right arrow Standard Option: Energy Star energy star.jpg , Wet Rated energy star.jpg , LED energy star.jpg
right arrow Standard Voltage: 10-99
right arrow Standard Glass Finish or Style: Frosted , Opal
right arrow Standard Lumens: 1101-1600
right arrow Standard Number of Blades: 8 Plus Blades
right arrow Standard Location Rating: Wet Rated
right arrow Standard Wattage: 18w
Vendor Item #:
FPD8159GRW
