Fanimation

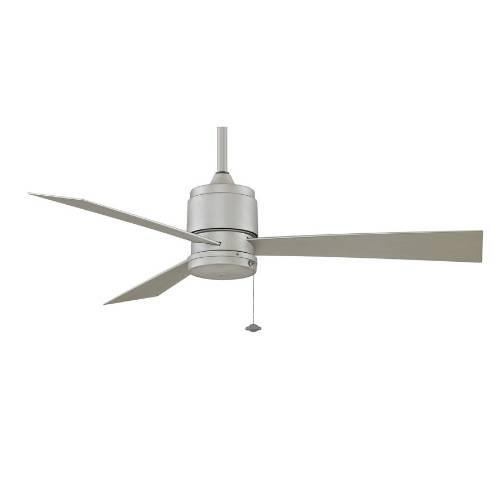

Zonix Wet Location: Satin Nickel 220V (FP4640SN-220)
$566.99
Call For Price
Enlarge Image
ENERGY INFORMATION
at High Speed
Airflow
4946
Cubic Feet per Minute		 Electricity Rate
43
Watts
(excluded lights)		 Airflow Efficiency
83
Cubic Feet Per Minute Per Watt
Description:
Sophisticated and stylish, The Zonix by Fanimation is the perfect eye candy for any contemporary room. The minimalist appearance and intelligent design of this three bladed ceiling fan are the perfect dichotomy of simple and smart. The Zonix, is wet location rated and includes blades which makes this the perfect ceiling fan for anyone who wants contemporary fashion without any high maintenance hassles. The Zonix is available in oil-rubbed bronze, satin-nickel and white finishes. The housing and switch cup of the Zonix are made of all-weather composite material, instead of steel and are completely rust proof. Optional controls are available.
Availability:
  • Manufacturer availability unknown.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 15.57"
right arrow Width: 52.00"
Additional Details:
right arrow Finish: Satin Nickel
right arrow Category: Fan-Uni
right arrow Family: Zonix Wet
right arrow Voltage: 240
right arrow Additional Info: 18 watt LED light kit with bulb available (sold separately) , 3 speed AC motor with reverse switch - Compatible with 220 volt electricity only , 6379 CFM on High , Pull Chain Operated , Set of 3 52 inch blades with multiple Wet Rated finishes included , WiFi or bluetooth compatible (required controls sold separately)
right arrow Air Flow CFM: 4946
right arrow Air Flow Efficiency: 83
right arrow Amperage: 0.18
right arrow Blade Finish: Satin Nickel
right arrow Blade Pitch: 14
right arrow Blade Span: 43 - 54
right arrow Canopy: Diameter- 5.75 Height- 2.625
right arrow Diameter: 7.29
right arrow Down Rod Included: 4.5
right arrow Electricity Used: 43
right arrow Harmonized Codes: 8414.51.3000
right arrow Length: 52
right arrow Light Kit Included: No
right arrow Material: Composite
right arrow Motor Fan Speed: 3
right arrow Motor RPM: 157
right arrow Motor Size: 153 x 18
right arrow Motor Type: AC
right arrow Pull Chain Included: Yes
right arrow Ship Carton Height: 11.7
right arrow Ship Carton Length: 27.90
right arrow Ship Carton Width: 10.5
right arrow Ship Weight: 17.9
right arrow Sold By: Each
right arrow Warranty: Limited Lifetime Warranty
right arrow Weight: 14.7
right arrow Wire Included: 80"
right arrow Airflow Efficiency Low: 234
right arrow Airflow Efficiency Medium: 103
right arrow Blade Finish Method: Painted
right arrow Blade Material: Composite
right arrow Blade Reversible: No
right arrow Blade Sweep: 43 - 54
right arrow Carton Cubic Feet: 1.9835
right arrow Cartons Per Unit: 1
right arrow Case Height: 11.7
right arrow Case Length: 27.9
right arrow Case Weight Pounds: 17.9
right arrow Case Width: 10.5
right arrow CEC Uploaded: No
right arrow Ceiling To Blade Edge: 13.23
right arrow Ceiling to Bottom No LK: 13.23
right arrow CFM Low: 2103
right arrow CFM Medium: 3559
right arrow Compatible Accessories: CCK8002SN, DR1-12SN, DR1-18SN, DR1-24SN, DR1-36SN, DR1-48SN, DR1-60SN, DR1-72SN, DR1-CPSN
right arrow Compatible Blades: BPW4426CY, BPW4426WA, BPW4442CY, BPW4442WA
right arrow Compatible Controls: BTCR9-220, CRL4WH-220
right arrow Compatible Light Kits: LK4640SN-220
right arrow Compatible Wall Controls: C1-220, C2-220, C3-220, C6-220
right arrow Country of Origin: China
right arrow Current Draw Low: 0.08
right arrow Current Draw Medium: 0.12
right arrow DOE-FTC Uploaded: No
right arrow Exempt from DOE Procedure: Yes
right arrow Included Control Type: Pull Chain
right arrow IP Rating: IP21
right arrow Leadwire: 80
right arrow Maximum Slope Degree: 27
right arrow Motor Finish Method Type: Painted
right arrow Motor Reversible: Yes
right arrow Number of Blades: 3
right arrow Regulated Product: Yes
right arrow Reverse Switch Location: Motor Housing
right arrow RPM Low II: 66
right arrow RPM Medium IV: 106
right arrow Safety Rating: TUV SUD
right arrow Voltage Cycles: 50HZ
right arrow Watts Low: 9
right arrow Watts Medium: 19
right arrow Standard Category: Fans
right arrow Standard Subcategory: Ceiling Fans with Light
right arrow Standard Finish: Nickel
right arrow Standard Style: Contemporary
right arrow Standard Number of Blades: 3 Blades
right arrow Standard Subfinish: Satin Nickel
Vendor Item #:
FP4640SN-220
